MeshDAQᵀᴹ Measurement and Automation for Industry & Residential

Distributed Mesh Data Acquisition and Control Modules based on URSI - High Speed Reliable Connectivity, which provides power, reliable communication, and a scalable mesh fail-safe architecture.

Easy Installation: Scale up to kilometers while measuring and controlling at the point itself — removes the need to bring all the cables to a distribution box, and most modules fit inside installation sockets.

Easy Wiring: A single twisted pair cable is used to connect two adjacent modules. Each module can connect up to three neighboring modules to provide greater reliability and fail-safe features.

Reliability & Safety: powered by (separate) low voltage installation, up to 60 V supply can deliver up to 50 W over a single twisted pair. The total power delivered in mesh structures can scale a multiple of that.

Small enough to fit Installation Socket or DIN Rail Mount

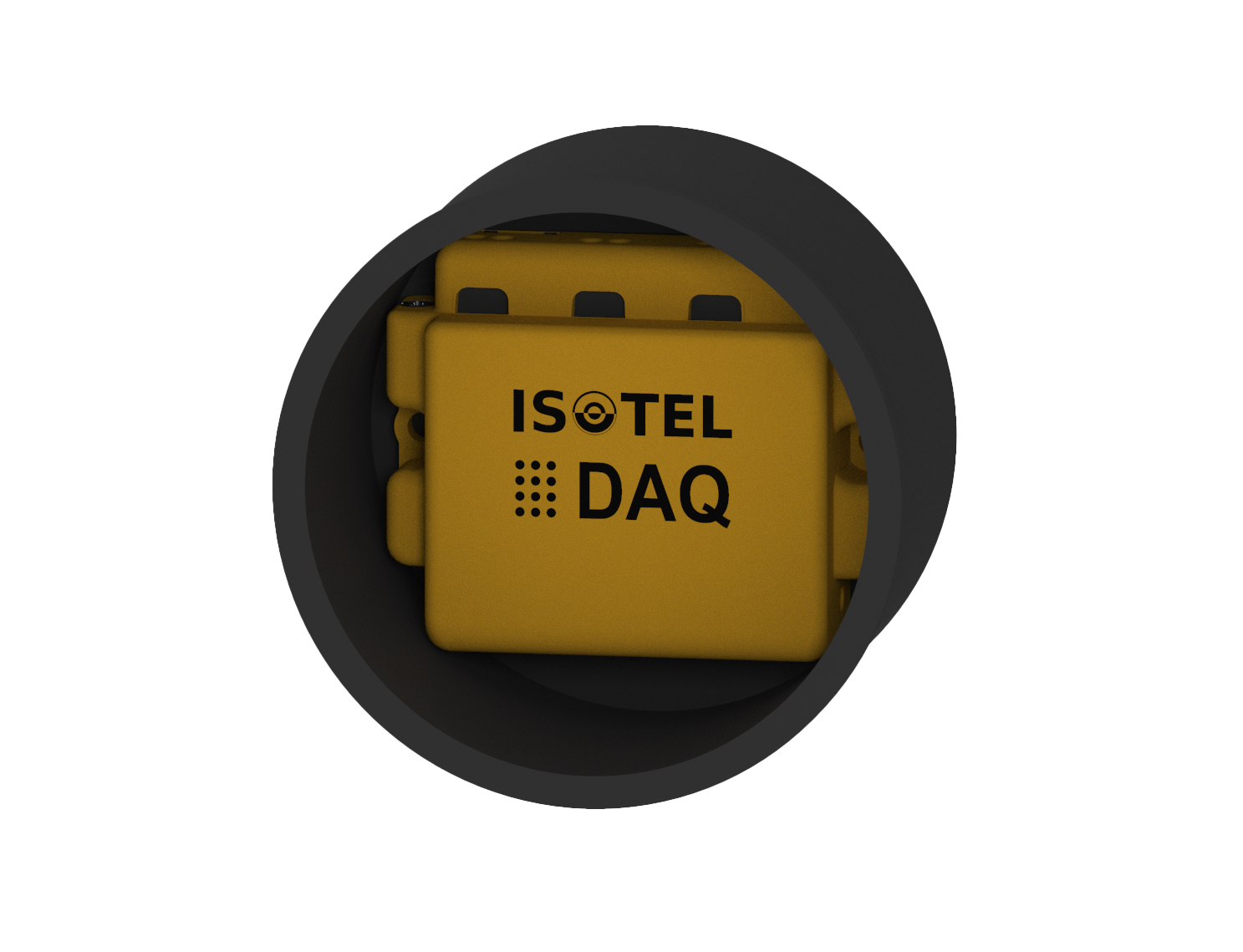

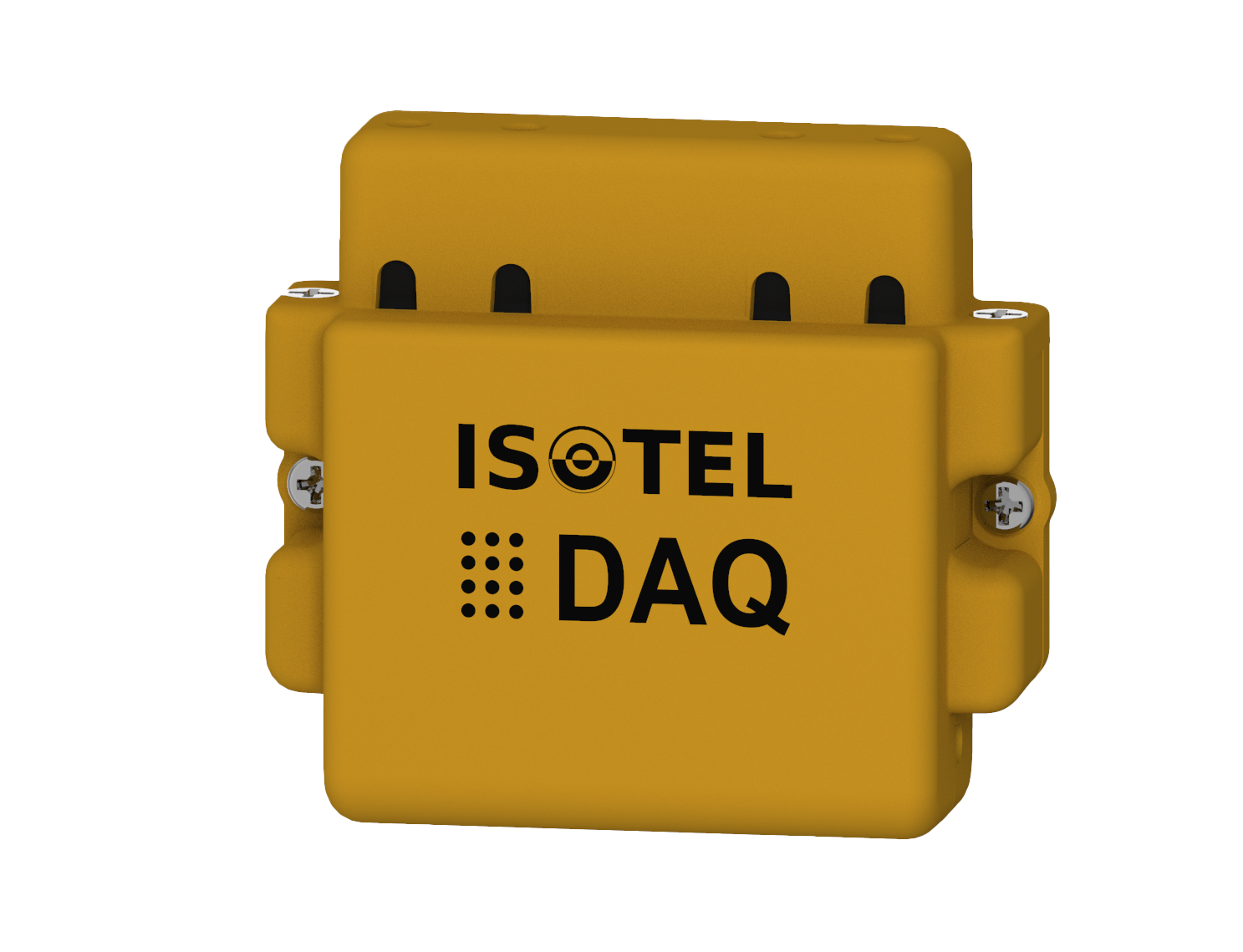

Three mounting options: Panel Mount, In-Socket and DIN Rail

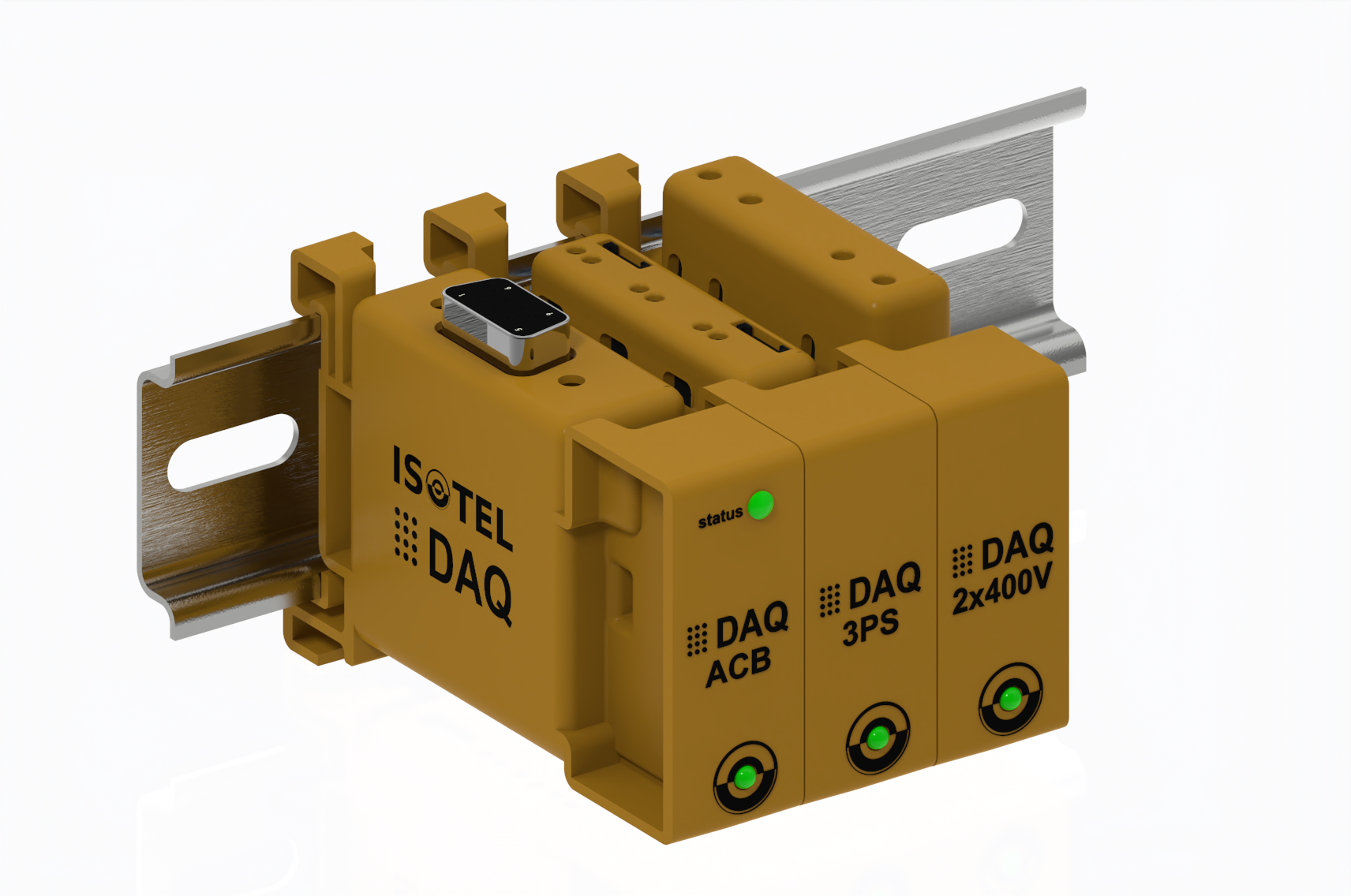

ISOTEL MeshDAQ Panel Mount ISOTEL MeshDAQ Socket Mount ISOTEL MeshDAQ DIN Mount

Software Integration

  • By using the USB on any module and our IDM software, which can run on low performance computers as small as BananaPI, provides GUI, web and python access, as well as MQTT integration

  • By using the OpenDAQ Gateway to get access to Dewesoft X

ISOTEL MeshDAQ DC-CT Series

DC-CT High Current Transducers

Small and Accurate 1000 DC and AC RMS Current Transducer, based on our proprietary DOT ≡ DC-CT® ISOTEL Innovation, are designed to be used in industrial and residential environment as power distribution, PV, BMS and other applications.

Key features:

  • Precise, Accurate and High Current Isolated Transducer in a Small Form Factor and Low Power Closed-Loop Operation

  • Features: RMS, Coulomb Counter, Current Histogram, Frequency Spectrum Snapshots Analysis <500 kHz BW

  • Triggers: Current Profile, Spectrum Mask

  • Streaming 10 kSa/s

  • Two MeshDAQ URSI ports, One CAN port, USB

Model - Data-sheet

Range

Bandwidth

Opening Ø

Linearity

Offset FS

SINAD

Size LxWxH

Supply

Power

DC-CT-M1000A-22

±1000 A

4.8 kHz

22 mm

<160 ppm

<100 mA

84 dB

34x70x77 mm

12-56 V

~6 W @FS

ISOTEL MeshDAQ Precision Current Sense

Ultra Precision Current Sense for DC-CT Transducers

Designed to digitize analog output precision DC-CT transducers with ultra low temperature drift, long-term and temperature stable gain accuracy.

Key features:

  • Single Channel Ultra Precision Current Sense in range ±1 A

  • Offset Drift 7 ppb/K, FS Gain Drift 50 ppb/K

  • Features: RMS, Frequency Spectrum Snapshot Analysis

  • Streaming 50 kSa/s

  • Dynamic range up to 145 dB at 60 Sa/s

  • Two MeshDAQ URSI ports, CAN or Clock Sync Input, USB

  • Plugs directly into ISOTEL and Dewesoft Test and Measurement DC-CTs, LEM, Danisense, Signaltech and others

Model - Data-sheet

Range

Bandwidth

Connector

Linearity

Offset FS

SINAD 1kHz

Size LxWxH

Supply

Power

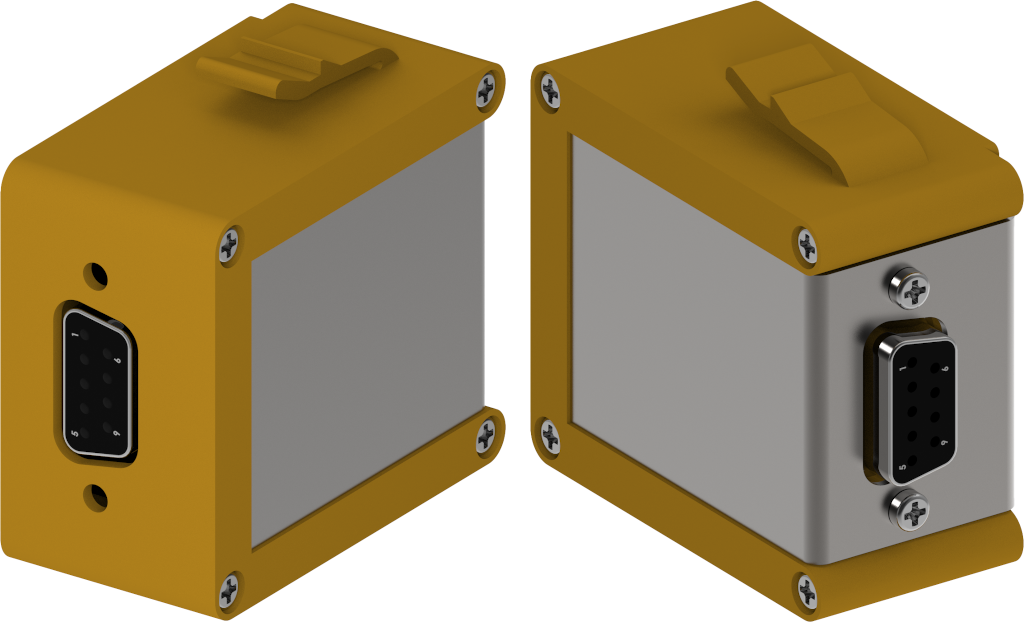

MeshDAQ-I1A

±1 Adc

<25 kHz

DSUB9

0.5 ppm

0.1 ppm

104 dB

52x26x45 mm

30-56 V

2 W

ISOTEL MeshDAQ Analog Voltage Input Series

Dual High and Low Voltage Analog Inputs

Complements the DC-CT Current Transducers with two channel to channel isolated DC and AC Voltage inputs. Combined with the DC-CT it may compute power and energy consumption.

Key features:

  • Two Channel to Channel Isolated 400 Vdc, 250 Vac Analog or as RMS Digital Inputs with programmable threshold, or as isolated Industrial Current Loop Receiver

  • Features: RMS, Frequency Spectrum Snapshot Analysis

  • In combination with DC-CT: Power and Energy Meter

  • Triggers: Over/Under Voltage Levels, Spectrum Masks

  • Streaming 10 kSa/s

  • Three MeshDAQ URSI ports, USB

  • Fits into a Standard 70 mm Installation Socket

Model - Data-sheet

Range

Bandwidth

Wire AWG

Linearity

Offset FS

SINAD

Size LxWxH,Ø

Supply

Power

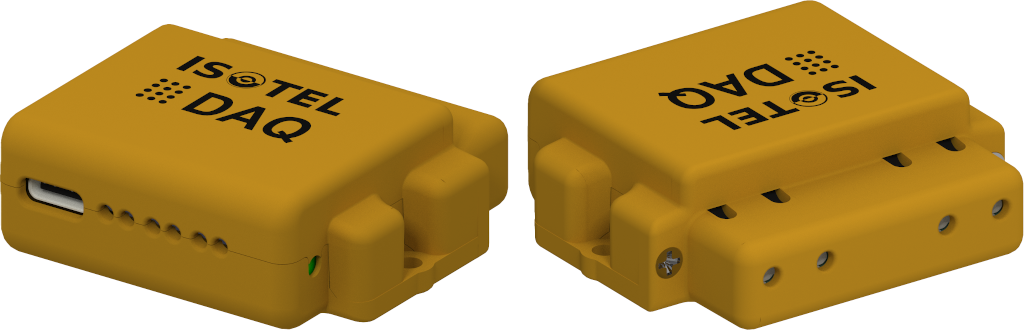

MeshDAQ-2x400V(-DIN)

±400 Vdc

3 kHz

24 .. 18

<100 ppm

< ±50 mV

84 dB

48x54x18,63 mm

6-56 V

~0.5 W

MeshDAQ-2x60V(-DIN)

±60 Vdc

3 kHz

24 .. 18

<100 ppm

< ±10 mV

84 dB

48x54x18,63 mm

6-56 V

~0.5 W

MeshDAQ-2x20mA(-DIN)

±20 mAdc

3 kHz

24 .. 18

<100 ppm

< ±3 uA

84 dB

48x54x18,63 mm

6-56 V

~0.5 W

ISOTEL MeshDAQ Sensor Series

General Purpose Sensor Interface

General Purpose Interface can address various DC and AC sensors.

Key features:

  • Three Non-Isolated Differential Analog/Digital Channels with programmable gain, threshold, and up to +/-10 Vdc

  • Analog Pre-processing as Mixers/Down-Samplers, sample rate from 2 MSa/s @ 12-bit down to 100 Sa/s and 20-bits

  • Bipolar DC Outputs within -5 .. 5 V and 50 mA or as

  • Two Unipolar DC Outputs, one within -5 .. 5 V and the other within 0 .. 5 V, or as

  • Differential AC output -5 .. 5 Vpp and up to 1 MHz with adjustable offset within 0 .. 5 V

  • Features: Two precise 6W/4W or three less accurate 4W DC/AC Strain-gauges, LVDT, Resolvers, Sonar Driver/Receiver, Digital Counters

  • Triggers: On Levels and Changes

  • Streaming 10 kSa/s

  • Three MeshDAQ URSI ports, USB

Model - Data-sheet

Range

Bandwidth

Connector

Linearity

Offset FS

SINAD

Size LxWxH,Ø

Supply

Power

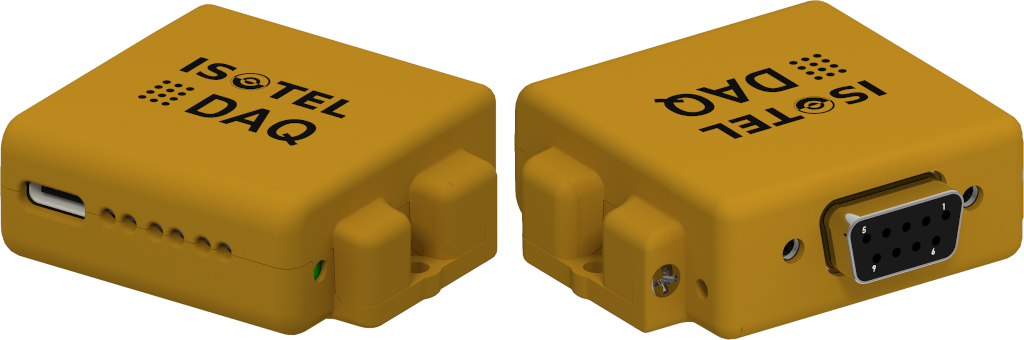

MeshDAQ-ACB(-DIN)

±10 Vdc

5 kHz

DSUB9F

<60 ppm

TBD

84 dB

48x54x18,60 mm

6-56 V

0.5..1 W

ISOTEL MeshDAQ Driver Series

Triple Power Driver

Three independent, adjustable, non-isolated, power outputs, up to 0.9 A and up to supply voltage 56 V, with total power limited to 50 W. Typically used to supply valves, irrigation systems, motors and decorative RGB LED lightning. It features IMO to detect motion or inclination i.e. of windows, and sensor expansion port to connect various sensors, i.e. earth humidity, temperature probes, etc.

Key features:

  • Three Non-Isolated Half-Bridge (Two Quadrant) Voltage Adjustable Power Outputs

  • 3D Accelerometer and Gyroscope

  • Features: Voltage Regulated Output with Current Sense, Window Inclination Controller, Valve Controller, Three Phase Motor Controller, Resolver Input, I2C/1-Wire Sensor Expansion Port, Digital/Counter Inputs

  • Triggers: IMU Thresholds, Current Profiles, Faults

  • Streaming 2 kSa/s

  • Three MeshDAQ URSI ports, USB

  • Fits into a Standard 60 mm Installation Socket

Model - Data-sheet

Range

Current

Wire AWG

Bandwidth

Ripple

Size LxWxH,Ø

Supply

Power

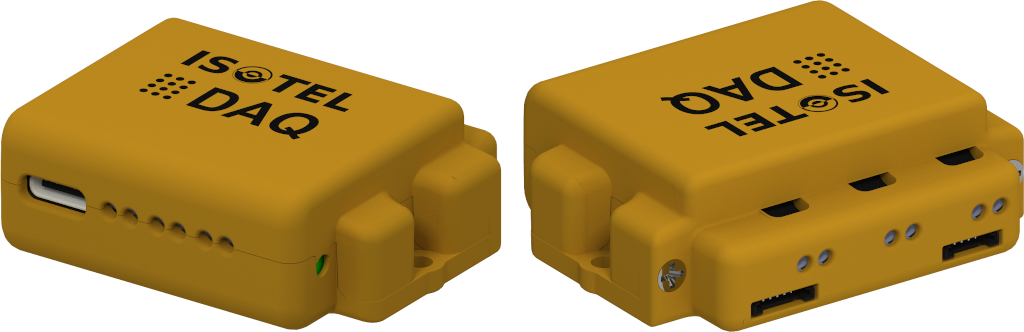

MeshDAQ-3PS(-DIN)

56 Vdc

0.9 A

26 .. 22

? Hz

? mVpp

43x54x18,60 mm

6-56 V

0.5..50 W

MeshDAQ-3MC(-DIN)

56 Vdc

0.9 A

26 .. 22

? kHz

43x54x18,60 mm

6-56 V

0.5..50 W
