Mixed Signal & Domain Simulation for Embedded Worlds

Bringing Open-Source Tools Together

Key challenge was to find a working combinations of mature packages to get a usable and working solution of Verilog simulation with mixed-signal spice. Here is the list of open-source software that you will need to begin with mixed-signal and Verilog simulations:

ngSpice - Mixed Signal Simulation


Spice originally developed in Berkeley has gone many ways and it’s concepts and core can be found in numerous forks. Here we propose a very well packaged version of spice called ngspice featuring:

  • standard spice core based on spice 3f4

  • mixed signal xspice core

  • extension to verilog-A models

  • T-CAD spice simulation

  • tcl scripting

In addition Isotel NgSpice Fork on SourceForge adds

  • co-simulation of C/C++ or other languages

and in addition MixedSim Open-Source Library on GitHub provides:

  • all examples found in these articles

  • and Eagle supporting ULP and library.

Installation procedure for ngspice is described in user manual. The MixedSim Open-Source lib just needs to be downloaded, no extra installation steps are needed.

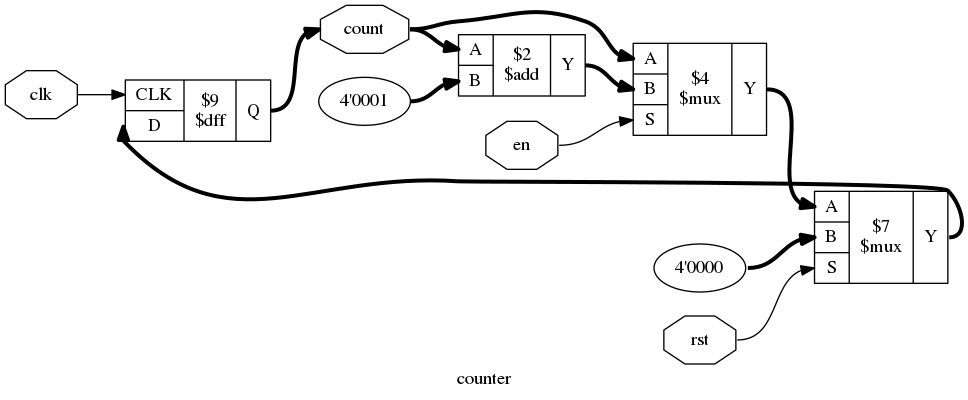

Yosys - Verilogy RTL synthesis


Yosys developed by Clifford Wolf is a framework for Verilog RTL synthesis with extensive Verilog-2005 support provides a basic set of synthesis algorithms for various application domains. Selected features and typical applications:

  • Process almost any synthesizable Verilog-2005 design

  • Converting Verilog to BLIF / EDIF/ BTOR / SMT-LIB / simple RTL Verilog / etc.

  • Built-in formal methods for checking properties and equivalence

  • Mapping to ASIC standard cell libraries (in Liberty File Format)

  • Mapping to Xilinx 7-Series and Lattice iCE40 FPGAs

  • Foundation and/or front-end for custom flows

Installation procedure is described in user manuals.

iverilog - Icarus Verilog


Icarus Verilog is a Verilog simulation and synthesis tool. It operates as a compiler, compiling source code written in Verilog (IEEE-1364) into some target format.

Written by Stephen Williams is one of the most popular free verilog simulators. It’s a part of every linux distribution, for details on installation see Installation Guide.

gtkwave - viewer


GTKWave is an analysis tool used to perform debugging on Verilog or VHDL simulation models. GTKWave has been developed to perform debug tasks on large systems on a chip and has been used in this capacity as an offline replacement for third-party debug tools. It features two interlocking tools:

  • gtkwave, is the waveform analyzer and is the primary tool used for visualization, and

  • rtlbrowse, is used to view and navigate through RTL source code.

It’s a part of every linux distribution. Installation instructions and user guide can be found on this link.

graphviz - Visualization tool


Graph visualization is a way of representing structural information as diagrams of abstract graphs and networks. It is needed to display synthesized verilog output from the Yosys.

It’s a part of every linux distribution, for other systems please follow the download page.
